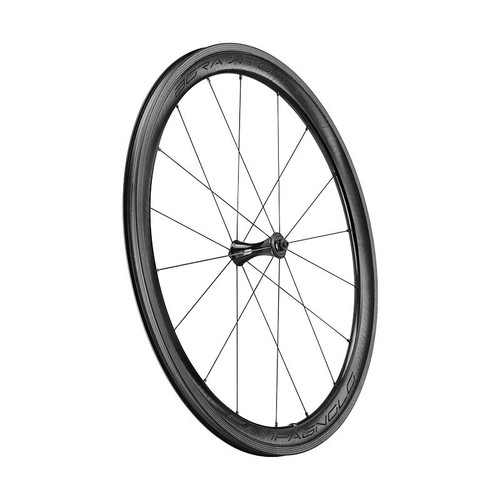

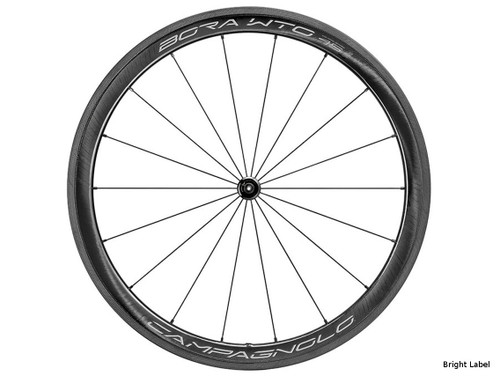

The family of carbon aero wheels is further enhanced with the 45 mm profile, designed to appeal to a broader customer base. The design of the rim enables maximum aerodynamic penetration, and at certain angles, the wind can actually become a valuable ally to the rider. Aerodynamic aluminium rims and hubs and ceramic USB cup-and-cone bearing system in the hubs themselves: every design choice has been made with a view to optimising performance.
The 19 mm internal diameter of the rim enables tyres of 23mm, 25mm and 28mm to be fitted. In addition, with the 2-Way Fit version, Campagnolo offers its tried-and-tested technology with full compatibility with clincher and tubeless tyres. While the key purpose of these wheels is to deliver extreme performance, safety is also guaranteed by the Campagnolo AC3 (All Conditions Carbon Control) technology, which ensures safe, modular braking in all weather conditions. Available versions: bright and dark label, Campagnolo FW or HG11 body.
45 mm… but aero
The rim design enables the maximum amount of aerodynamic penetration when the wind angle is between 12° and 19°, making it a thrust for triathlon athletes.
The streamlined design of the central part of the hub decreases the frontal area of the component whilst the special design of the flanges favours airflow detachment
The elliptical aero cross section with 18 front spokes results in a far superior rolling resistance
The well-known USB cup-and-cone bearing system guarantees smoothness in the ceramic bearings
The 2-Way Fit profile allows you to mount either a clincher tyre or a tyre which offers the least rolling resistance possible: the tubeless tyre
The 19 mm inner diameter enables you to mount 23, 25 and 28 mm tyres, with perfect pairing of the rim-tyre system
Choose aero... but make it Campagnolo
Campagnolo's rideability is enhanced by the 45 mm profile, despite the aerodynamic design of the rim
The wheel structure enables reducing energy dissipation, transferring all the energy produced by the cyclist to the asphalt
A 45 mm profile and a weight of less than 1,500 g for the pair makes this wheel ideal for riding on hilly routes
Ultra Smooth Bearings (USB) - Their ceramic USB - Ultra Smooth Bearings guarantee extremely high smoothness.
G3 Geometry - G3 geometry: reinvent the wheel, not just its look
AC3 - The introduction of the meticulously researched textured design of the rim brake area creates a surefooted stopping power that is reliable and potent no matter what the weather will throw at you.
Wheel Developed In The Wind Tunnel: every wheel component, from the rim to the hub and the spokes, is designed to guarantee maximum aerodynamic penetration.
Rim Made Entirely Of High Modulus Carbon: the rim made of unidirectional carbon ensures the rideability Campagnolo is known for.
Special Brake Blocks For Carbon Wheels: the special compound boosts braking performance on both wet and dry surfaces, without increasing the wear rate of the pad.
USB Ceramic Cup-and-cone System: easy to register balls/bearings - reduced possibility of ball/bearing play - precise cycling operations - steady performance levels.
Hub Structure In Lightweight Aluminium That Is Extremely Stiff And Aerodynamic: optimised in the wind tunnel and designed for optimal rigidity and weight
18 steel spokes in the front elliptical cross section
21 steel spokes in the rear elliptical cross section, spaced in groups of three through the G3 system
Anti-rotation technology on the radial spokes
Versions and Weights
Only available for 2-Way Fit: 1496 gr
Campagnolo sprocket set 10/11/12
Shimano sprocket set / SRAM 10/11
SRAM 12 sprocket set (when purchasing dedicated replacement body)
Black aluminium monolithic hub
USB ceramic cup-and-cone bearing system
Hub edge: 100 mm in the front, 130 mm in the rear
Pivot material: aluminium
USB cup-and-cone bearing system
Profile height: 45 mm
Rim material: carbon
Rim cross section (H x W): 45/26,5 mm Internal diameter of rim: 19 mm
AC3 technology on the braking rim
Water Transfer graphic
The Bora WT0 45 wheel is entirely hand-assembled by a specialised Campagnolo technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo wheels.
1.496 g - The weight refers to the couple of wheels and does not include the quick release, the rim tape, the identity card and the hub caps
The rim-tyre-pressure compatibility table is only and exclusively applicable to the following wheel models:
|Model||Brake Type||Profile Type||Internal Width|
|Bora WTO 60 DB||Disc Brake||2-Way Fit||C19|
|Bora WTO 45 DB||Disc Brake||2-Way Fit||C19|
|Bora WTO 33 DB||Disc Brake||2-Way Fit||C19|
|Bora WTO 60||Rim Brake||2-Way Fit||C19|
|Bora WTO 45||Rim Brake||2-Way Fit||C19|
|Bora WTO 33||Rim Brake||2-Way Fit||C19|
|Bora WTO 77||Rim Brake||2-Way Fit||C19|
|Bora One 50 DB||Disc Brake||Clincher||C17|
|Bora One 35 DB||Disc Brake||Clincher||C17|
|Bora Ultra 50||Rim Brake||Clincher||C17|
|Bora Ultra 35||Rim Brake||Clincher||C17|
|Bora One 50||Rim Brake||Clincher||C17|
|Bora One 35||Rim Brake||Clincher||C17|
|Shamal Carbon||Disc Brake||2-Way Fit||C21|
|Zonda DB||Disc Brake||Clincher||C17|
|Scirocco DB||Disc Brake||2-Way Fit Ready||C19|
As such, the rim-tyre-pressure compatibility table is not applicable to wheel models no longer present in the current 2021 range or to the wheel models currently in the range that appear in the following table:
|Model||Brake Type||Profile Type||Internal Width|
|Shamal Ultra DB||Disc Brake||2-Way Fit||C17|
|Shamal Mille||Rim Brake||Clincher||C17|
|Shamal Ultra||Rim Brake||2-Way Fit||C17|
|Shamal Ultra||Rim Brake||Clincher||C17|
It shall be the end user's sole and full responsibility to choose - on a case by case basis - an adequate and correct rim-tyre-pressure combination, as well as to conduct all verifications necessary to ascertain the correctness and safety of such combination. Without prejudice to the above, and in order to ensure optimum rolling resistance, grip and, most importantly, safety, we recommend that the end user, in making his choice, also takes into consideration the recommended combinations of hooked rim width, tyre width and tyre pressure indicated in the chart set forth below.
Due to safety reasons, follow the information of the tyre manufacturer regarding minimum and maximum rim width to be used but always ensure that the combination is listed as possible in this table.
Compatibility Table Rim-Tyre-Pressure
Use of tubeless and tubeless ready tyres is forbidden on 2-way Fit Ready rims without Campagnolo 2-way Fit Ready adhesive tape.
TL = Tube Less
TT = Tube Type
What's in the box?
Special brake block kit for carbon wheels (red compound): 40% better braking performance in wet conditions and 20% better in dry.
Lightweight Quick Release wheels with an aerodynamic profile and shiny finish.
35 mm tubeless valve
35 mm valve extender
Bushing to reduce the size of the valve hole
2 levers in composite material for tyre removal - User manual
