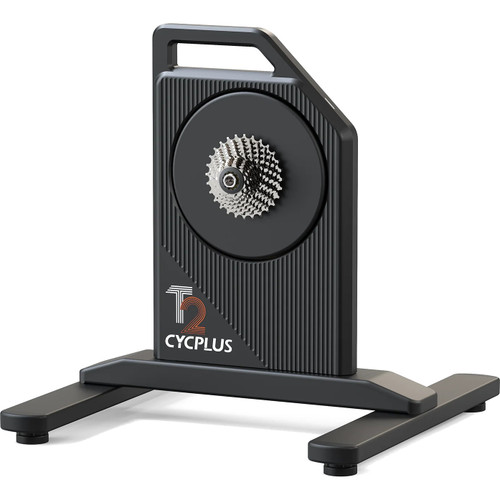

Cycplus T2H Smart Trainer

T2H Smart Trainer

BLDC Motor Stable & Reliable

The T2H features a 225mm professional-grade motor with 52 high-sensitivity magnets and 48 electromagnetic coils, delivering precise power control and responsive dynamics. Provides up to 85N·m of torque, ensuring smooth and effortless pedaling — even on steep climbs with small chainrings.

Virtual Shifting. Seamless Gear Changes.

No need for frequent mechanical shifting — reduce chain noise while enjoying smooth, uninterrupted transitions. *Requires the CYCPLUS BC2 Shifter (sold separately) and is not available in ERG mode.

Customized Resistance Adjustment

Supports up to 60 resistance levels for personalized training.

• 5% Low Gear 60 Levels: For fine-tuned resistance adjustments.
• 7% Mid Gear 40 Levels: For a realistic shifting feel.
• 12% High Gear 25 Levels: For quicker, larger resistance changes.

Personalized Settings Tailored to Your Riding Habits

With the CYCPLUS App, customize parameters such as rider weight, downhill simulation intensity, drivetrain responsiveness, and power smoothing.

Rapid Cooling. Ride Without Limits.

Dual-fan system with efficient heat dissipation ensures the trainer stays within optimal temperature ranges, meeting the demands of intense and long-duration rides.

Downhill Simulation

When connected to an external power source, the motor reduces system friction to enhance rotational inertia, delivering a more realistic downhill experience.

Features

• POWERFUL
  • 2200 W Max Power
  • 20% Gradient Simulation
  • 85 N·m Max Torque
• INNOVATION
  • Virtual Shifting with BC2
  • 60-Level Gear Adjustment
  • Custom Calibration Algorithm
• ACCURATE
  • ≤ 1% Power Accuracy
  • No Calibration Needed
• REALISTIC
  • Custom PMSM Motor
  • Dynamic Inertia & Downhill Simulation
  • Smooth, Lag-Free Pedaling
  • Low-Noise Direct Drive
• FLEXIBLE
  • Self-Powered Operation
  • Plug-Free Riding Support
  • Compact 0.27㎡ Footprint
  • Fits Most Bikes & Cassettes
• USER-FOCUSED
  • Quick Setup & Adjustable Feet
  • Slim 55 mm Profile
  • Integrated Handle for Easy Carry
  • CYCPLUS App Personalization

Specifications

• Dimensions 20.3" × 20.5" × 21.3" (516 × 520 × 540 mm)
• Net Weight 36.6 lbs (16.6 kg)
• Power Supply 48V / 1.25A (Unplugged mode supported)
• Max Power Output 2200 W
• Accuracy ±1%
• Calibration No calibration needed
• Max Gradient: Max gradient support 20%, < 20% at speeds < 18 km/h
• Downhill Simulation Plug-in mode only
• Max Torque 85 N·m
• Max Braking Force 250 N
• Wireless Connectivity BLE 5.0 & ANT+
• Supported Protocols ANT+ FE-C & BLE FTMS
• Frame Compatibility
  • 5 x 130 / 5 x 135(Quick Release)
  • 12 x 142 / 12 x148(Thru-axle)
• Cassette Compatibility
  • Shimano 8–12 speed Cassette
  • SRAM 8–11 speed Cassette
  • SRAM 12 speed Cassette (XDR hub needed)

What's Included

• T2
• Leg × 2
• Connection Cap × 2
• Screw for Leg × 8
• Screw Washer × 8
• 5 mm Allen Key for legs & quick release adapter‑R
• 17 mm Wrench for thru‑axle adapter‑R
• Hub pre‑installed
• Thru‑axle Adapter‑R pre‑installed
• Thru‑axle Adapter‑L pre‑installed
• Quick Release Adapter‑R
• Quick Release Adapter‑L
• Quick Release
• 8‑10 speed
• Cassette Spacer
• Cassette adjustment spacer [7x] Including 2 pcs pre‑installed with adapter
• Disc Brake Spacer
• Hydraulic Disk
• Brake Pad Spacer
• AC Adapter
• AC Cable
