Cycplus T3 Smart Trainer

T3 High-Power Smart Bike Trainer

High-Power Direct-Drive Cycling Trainer

Premium Motor Design

The T3 boasts a 240 mm permanent magnet synchronous motor, delivering peak torque consistently exceeding 110 Nm.

Advanced Cooling System

Advanced cooling system with copperplate framework ensures accelerated heat conductivity and faster heat dissipation, optimizing thermal performance.

Precise Data Metrics

Includes left-right power balance detection for deeper insight into your power output.
A new algorithm offers a personalized and realistic cycling experience based on your weight and training habits.

Superior Performance

With its new high-power brushless motor, the T3 provides maximum torque exceeding 110Nm, supports up to 2800W of power, and simulates gradients up to 27%, catering to professional-level sprinting and climbing training while delivering a comprehensive upgrade in overall training.

Smooth Pedaling Sensation

The higher-torque motor and CYCPLUS’s motor control algorithms deliver a smoother, more responsive, and lifelike pedaling experience that closely resembles real-world riding.

Seamless Climbing Performance

Even at low cadence (e.g., 60 RPM), the T3’s motor maintains torque exceeding 80 Nm, ensuring consistent resistance even on challenging gradients (such as Zwift’s “Three Sisters” course with ~18.5 % slope).

Enhanced Unplugged Riding

Improved self-power generation makes the unplugged experience nearly indistinguishable from plugged-in training — no external power needed once started (except after long pauses).

Efficient Heat Dissipation

Copperplate combined with built-in dual fans keeps the system cool, enabling extended rides:

• 60+ min at 17 % slope (48 Nm resistance)
• 60+ min at 14 % slope (40 Nm resistance) (Data from CYCPLUS lab tests; real-world results may vary.)

Scientific Manufacturing Process

Unlike many power meters that require calibration weights, the T3 uses in-house torque sensing with continuous calibration from 0–120 Nm, achieving a highly accurate curve and ±1 % power accuracy.

Precise Ride Simulation

The T3 accounts for wind speed, gradient, and ground friction to deliver a realistic downhill experience (external power required).

Smart Interaction & Connectivity

Built-in ANT+ FE-C and BLE FTMS support popular cycling apps like Zwift, TrainerRoad, Rouvy, and selected bike computers (Garmin, Wahoo, iGPSPORT, etc.).

Quiet & Stable Design

Elastic footpads + 6 mm training mat offer double shock absorption and noise reduction.
Due to the larger motor, there may be slightly increased operational noise compared to smaller models.

Features

• Slim body (54.5 mm) for compatibility with larger flywheels.

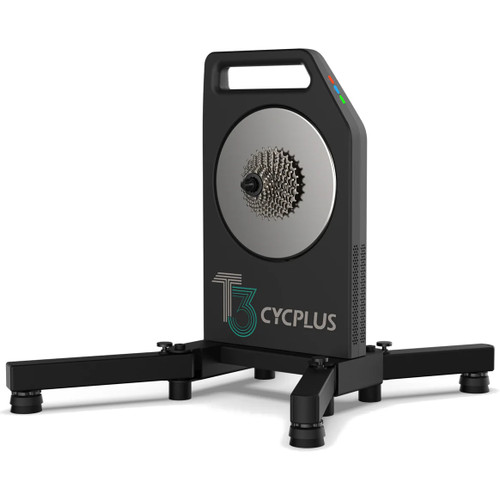

• Foldable X-leg design for enhanced stability and compact storage.
• Compatible axles: Quick-Release (5×130, 5×135), Thru-Axle (12×142, 12×148).
• Fits most frames, including disc brake configurations.
• No calibration needed
• Highly responsive resistance
• Extra-large handle for easy transport
• Shock-absorbing footpads for bike stability

Specifications

• Model: CYCPLUS T3
• Type: Intelligent Direct-Drive Trainer
• Magnet: 50 neodymium magnets + 45 electromagnetic coils
• Structure: Foldable X-shape
• Dimensions (unfolded): 520 × 699 × 547 mm
• Dimensions (folded): 300 × 257 × 547 mm
• Net Weight (with cassette): 42.8 lbs (19.4 kg)
• Power Supply: 48 V / 1.25 A (supports unplugged mode)
• Max Power: 2800 W
• Output Power (40 km/h): ~2400 W
• Power Accuracy: ±1 %
• Left-Right Power Balance: Yes
• Calibration Needed: No calibration needed
• Max Gradient Simulation: 27 %
• Downhill Simulation: Plug-in mode only
• Max Torque: 110 N·m
• Max Braking Force: 323 N
• Wireless Signal: Bluetooth 5.0 & ANT+
• ANT+ FE-C Protocol: Yes
• FTMS Protocol: Yes
• Frame Compatibility:
  • Quick release: 5×130 mm / 5×135 mm
  • Thru-axle: 12×142 mm / 12×148 mm
• Cassette Compatibility:
  • Shimano 8–12 speed
  • SRAM 8–11 speed
  • SRAM 12 speed (with XDR hub needed)

What's Included

• T3 Smart Bike Trainer Unit
• Cassette (pre-installed)
• Thru-axle adapter-R (pre-installed)
• Thru-axle adapter-L (pre-installed)
• Quick release adapter-R
• Quick release adapter-L
• 17 mm wrench (for thru-axle adapter-R)
• Allen key (for quick release adapter-R)
• 8-10 speed cassette spacer
• Cassette adjustment spacer 5x
• Disc brake spacer
• Oil disk brake pad spacer
• Quick release skewer
• AC adapter
• AC power cable
• Cushioning/training mat
• USB ANT+ receiver + extension cable
