DT Swiss ARC1400 Dicut 50 Carbon Disc Brake Clincher Wheel
From $1,299.99
The current DT Swiss aero disc brake wheelset with a perfect synthesis of acceleration, aerodynamics and handling - even in the most challenging conditions.
The low profile aero wheelset to keep the power on your pedals on challenging and sharp courses which demand superb handling.

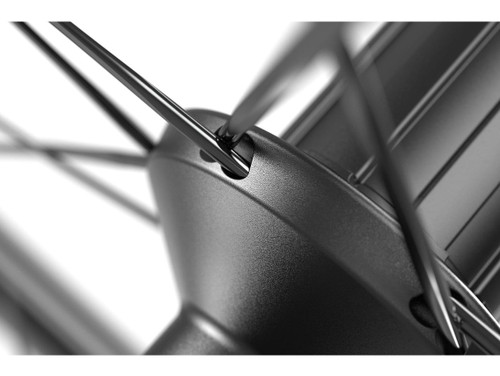

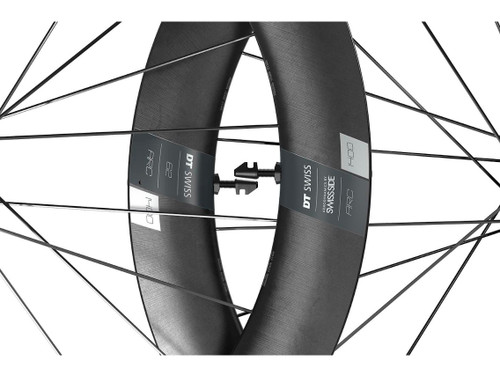

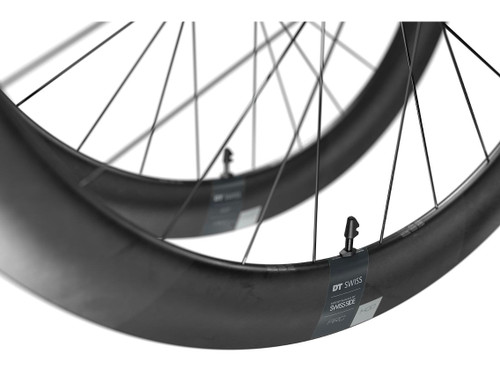

The sophisticated ARC 1400 DICUT wheels represent the latest DNA of the 1400 level of DT Swiss and our aero partner SWISS SIDE. The AERO+ profile rims set a new standard in aerodynamic performance and keep aero drag as low as possible under different crosswind angles. In moderate side wind conditions, riders benefit from propulsion through a sailing effect. Reduced wind sensitivity allows riders to maintain a stable aerodynamic position and full control of their bike. High-end DT Swiss aero spokes and the light 240 DICUT hub with its reliable Ratchet EXP system for more direct engagement complete this wheelsets.
Technologies
Aero+ -The symbiosis of drag, handling and efficiency.

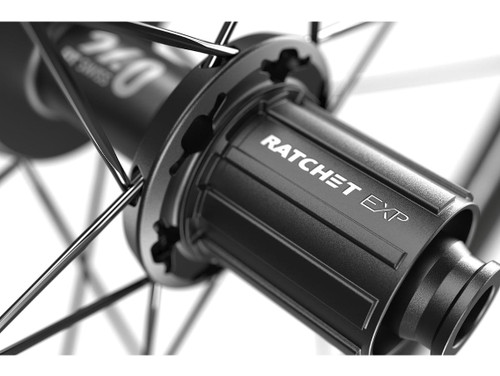

Ratchet Exp
Tubeless -All DT Swiss wheelsets are tubeless compatible and the ASM versions come tubeless ready, equipped with tubeless tape and valves.
Bearing -DT Swiss hubs are designed to function optimally once installed in a bicycle. To achieve this, the clamping force created by the wheel mounting system must be taken into account when constructing a hub. Learn how to ensure the optimal rotating property of the ball bearings and discover why DT Swiss does not offer hubs with adjustable bearing clearance.
Specifications

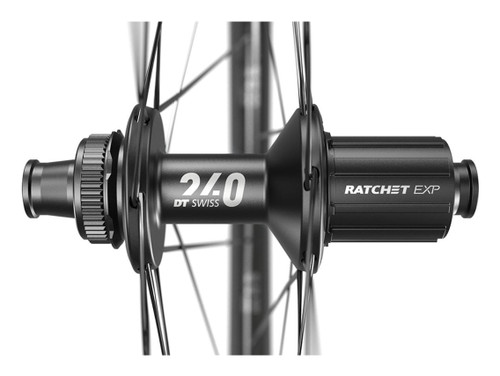

| HUB Type | 240 with Ratchet EXP 36 |
|---|---|
| Rim | Carbon, Hooked / Crotchet tubeless TC |
| Rim Height | 50mm |
| Spokes | DT Aero Comp T-Head |
| Front | Rear - Shimano | |
|---|---|---|
| Net Weight | 716 g | 836 g |
| Recommended System Weight Max. | 110kg | 110kg |
| ASTM Classification | 1 | 1 |
| Material | Carbon | Carbon |
| Rim Joint | - | - |
| Tyre Interface | Hooked / Crotchet tubeless TC | Hooked / Crotchet tubeless TC |
| Valve Hole | Presta | Presta |
| Rim Diameter | 29" / 700C | 29" / 700C |
| Rim Height | 50 mm | 50 mm |
| Decal Type | Waterslide | Waterslide |
| Inner Width | 20 mm | 20 mm |
| Outer Width | 27 mm | 27 mm |
| Hub Type | 240 | 240 |
| Axle System | 12mm Thru Axle | 12mm Thru Axle |
| Built-In Dimension | 100mm | 142mm |
| Brake Interface | Disc Center Lock | Disc Center Lock |
| Freehub Body | - | Shim. RD. 11SP Light (ASL11) (mounted) |
| Freehub System | - | Ratchet EXP 36 |
| Spokes Left | DT aero comp t-head | DT aero comp t-head |
| Spokes Right | DT aero comp t-head | DT aero comp t-head |
| Spoke Pattern | Two-cross (1:1) | Two-cross (1:1) |
| Nipples | DT Pro Lock hidden aluminum | DT Pro Lock hidden aluminum |
| Inclusive | Tubeless tape 23 mm TL valve alu black 49-65 mm valve guard | Tubeless tape 23 mm TL valve alu black 49-65 mm SRAM XDR Road freehub body kit valve guard |
