New
An iconic name for Miche®, the SWRs mark the company’s entry into the carbon road wheel segment.
They symbolize the brand’s evolution towards excellence, blending innovative design, superior materials and high performance.
Every detail has been meticulously crafted to deliver the perfect combination of lightness, robustness and smoothness, merging tradition with innovation.
FEATURES

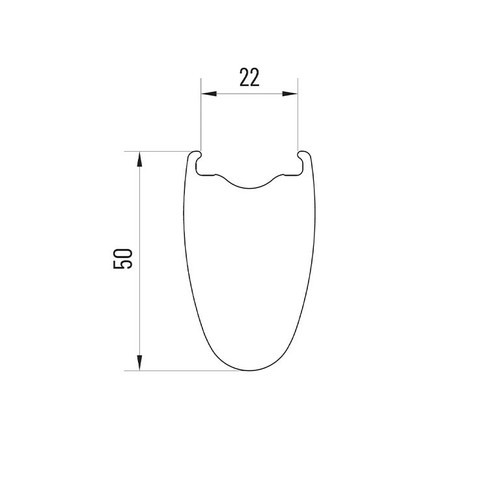

- The wheels are available with 40mm and 50mm profiles for DX disc brakes only. The rim is in T700 carbon fibre. The inner rim width is 22mm. Available as optional a tubeless kit assembled and guaranteed by QC Miche.
- Hub body made of AL 7075 - T6, CNC-lightened, with innovative design and 16+8 pattern for a better torsional rigidity and responsiveness of the wheel. Adjustment of the front and rear hub smoothness through a special ring nut. To fix the brake disc rotor use only lock ring for thru axle with 27 mm hole.
SPECIFICATIONS
- ASTM: 1
- Hubs: AL 7075 T6
- Spokes: Stainless steel black / aero / straight pull / double butted
- Nipples: AL 7075 T6 / Black
- Weight (g): 1620 (+/- 3%) (Tubeless Ready +20)
- Assembly: 24 - 24 / Crossing
- O.L.D. (mm): 100 - 142
- Bearings: MICHE® 2RS
- Transmission: RES 30 Rapid Engagement System
- Compatibility: Shimano® HG, SRAM® XDR
- Max load, bike + user (kg): 109 Kg
- Rim profile (mm): F 50 - R 50
- Braking system: Disc Center Lock
- Included accessories: Elastic wheels protection / Instruction manual / Brake rotor lock ring
- Rim material: UD Carbon fibre
- Freewheel body: AL 7075 T6 - Steel
- Rim dimension: 622X22 TC
- Tyre dimension: 25mm ÷ 34mm
- Tyre type: Tubeless
- Front axle (mm): 12
- Rear axle (mm): 12
