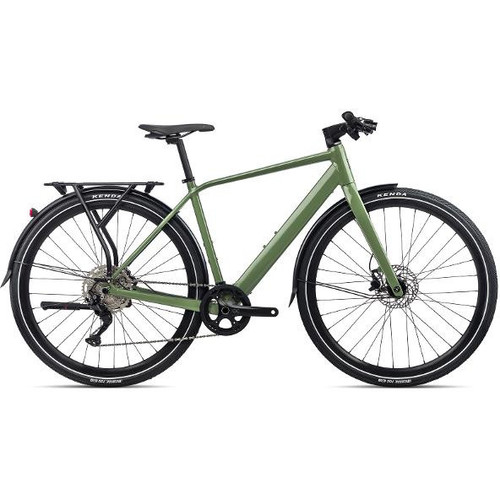

Orbea Vibe H30 Urban Green

URBAN LIGHTNESS

In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echos your sense of style without overshadowing it - a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces. Orbea Vibe is a bike that is light weight and enjoyable to ride - with a motor, battery and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

INTERGRATED LIGHTS

It's like magic - fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with front and rear lights that announce your presence day and night.

IWOC TRIO

Vibe's control centre is an attractive and discreet handlebar mounted switch, putting function at your fingertips without removing your hands from the bar.

ICR PLUS

Internal cable routing is carefully guided along the best path under the stem and through the head tube, with no rub or rattle and is optimised for traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.

SPECIFICATIONS

FRAME Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible
FORK Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.
CRANKSET OC 42t, w/Chainguard
HEADSET Acros Alloy 1-1/2" Internal Cable Routing
HANDLEBAR Alloy 31.8mm 12mm Rise 700mm
STEM OC1 31.8mm interface -6º
SHIFTERS Shimano Deore M4100
BRAKES Magura MT30 Hydraulic Disc Easy Route Connection
CASSETTE Shimano CS-M4100 11-46t 10-Speed
REAR DERAILLEUR Shimano Deore M5120 SGS Shadow Plus
CHAIN KMC X10
WHEELS Ready GR
TYRES Kenda K1052 700x45C Reflective type+puncture protection
SEATPOST OC 27.2 Offset 0, for integrated light
SADDLE Selle Royal Lift 1215 URN 278x145mm
FRONT POSITION LIGHT Front position light, on head tube, COB Led, On/Off, 60 Lumen, ECE50.
REAR LIGHT Lezyne FENDER STVZO seatpost mounting 11 lumens
MOTOR Ebikemotion X35 Plus 25kmh
BATTERY Ebikemotion 36V/6.9A 248Wh ANT+
CHARGER Ebikemotion X35
REMOTE Ebikemotion iWoc TRIO
FRONT WHEEL AXLE Orbea Thru Axle 12x100mm M12x2 P1 Hollow
BELL Knog OI Classic
