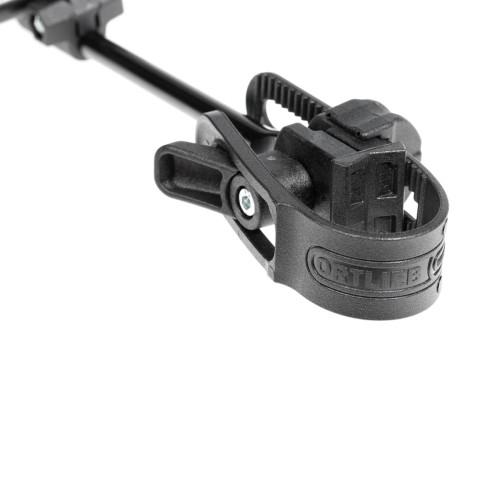

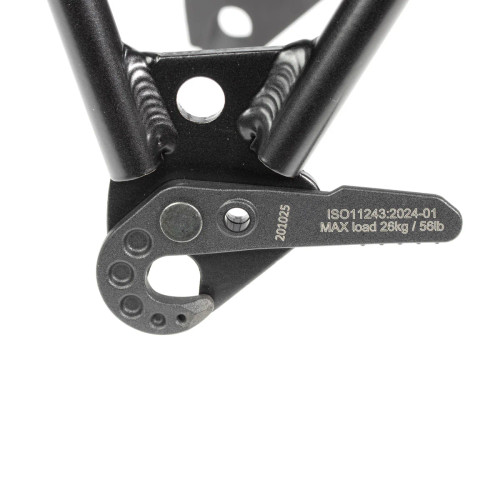

Ortlieb Quick Rack XL

From road, gravel or mountain bike to commuter bike in only 15 seconds – with the innovative Quick-Rack, you transform your sporty bike into an all-rounder for everyday use.

Transform your bike in no time at all from a lightweight bike for sporty tours into a transport bike for shopping and commuting – this way you stay completely flexible. Fifteen seconds is all it takes to mount the practical luggage rack and only five seconds to remove it again. The struts with a diameter of 10 mm support a payload of up to 20 kilograms. The Quick-Rack is of course suitable for use with all of our fixation systems so that you can combine it with any ORTLIEB bag. Thanks to the two hanging levels and a platform, you can also use and fasten panniers and a basket at the same time. The optional mudguards make sure that you keep dry and clean in bad weather too.

Features

• Lightweight luggage carrier with quick release system for fast mounting and dismounting on the bike

• 5/15 method, 15 seconds for mounting, 5 seconds for dismounting

• Quick change from sporty bike to commuter bike

• Leaves a clean bike, no fixed luggage rack

• Can be used on carbon seat posts and carbon frames with M5 or M6 threads

• Can be used on full-suspension bikes

• Universally adaptable thanks to different strut lengths

• Touring rack with two mounting levels, e.g. for simultaneous use of basket and side panniers

• Enables direct attachment of all bags with QL1/2.1/3.1 and Top-Lock system

• Integrated threads for direct mounting of QL3.1 snap-in knobs

• Suitable for wheel sizes up to 29“/(2.6”) when mounted via an adapter axle; up to 2.9“/3” when mounted directly or with Seat Stay Adapter

• Horizontal and vertical struts with 12 mm tube diameter

• Luggage carrier platform with 10 mm tube diameter

• Incl. mounting kit; no additional mounting parts required

• Preparation for optional rear light (light not included)
• Maximum Payload 26kg

Specifications

• Height: 43 cm

• Width: 21 cm

• Depth: 38 cm

• Load: 26 kg

• Weight: 780 g
