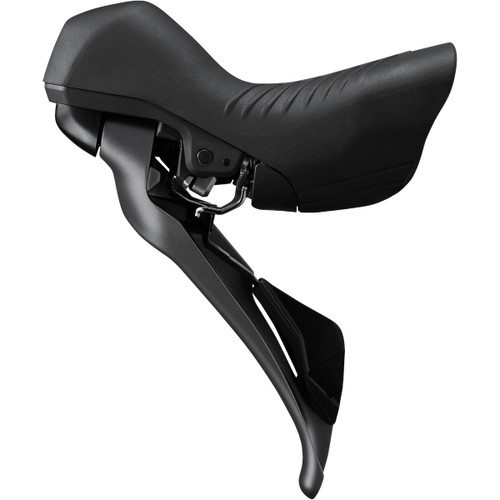

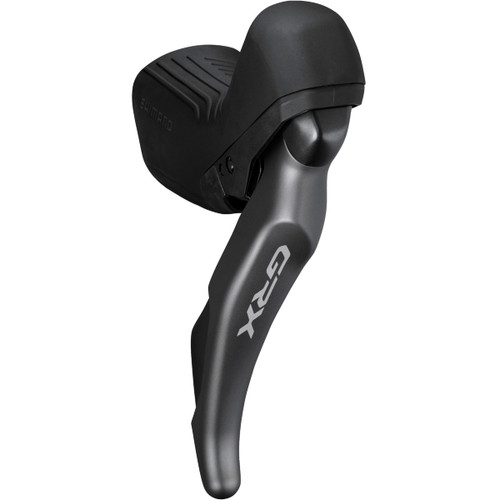

GRX Dual Control Lever 2X12s and Brake Caliper
The SHIMANO GRX DUAL CONTROL LEVER delivers light and responsive mechanical 12-speed shifting for mixed-terrain riding and racing. The ergonomic shifter design improves comfort by decreasing pressure on your palms, while the textured, anti-slip brake lever surface increases control on bumpy terrain. The GRX BR-RX820 disc brake caliper brings a new level of control to gravel cycling with enhanced modulation and a quicker initial braking point. And despite its smaller construction, the system is quieter and easier to maintain.
Features Lever
- Greater comfort and control on mixed terrain
- Gravel-specific brake lever and bracket ergonomics
- Anti-slip coating on brake lever surface
- Optimized for use with flared handlebars
Features Caliper
- 10% wider pad clearance decreases brake noise
- Maintenance-friendly bleeding process
Specification Lever
- Model No: ST-RX820-R
- Series: GRX
- Bracket cover color: Standard
- Shifter type: DUAL CONTROL LEVER
- Shift lever: Rear speeds - 12
- Shift lever cable
- Outer casing|Lever side: OT-SP41
- Outer casing|Rear derailleur side: OT-RS900
- Inner cable|Polymer-coated cable
- Brake lever:
- Brake hose (kit): SM-BH90-JK-SSR
- Hose joint: Straight
- Brake hose color (kit)|1: Black
- Recommended brake caliper: BR-RX820
- Oil: SHIMANO Mineral
- Reach adjust: ✔
- Funnel bleeding: ✔
- Free stroke adjust: ✔
- SERVO WAVE: ✔
- Clamp band: Diameter (mm) 23.8-24.2
- Average weight: 289
- Color: Series color

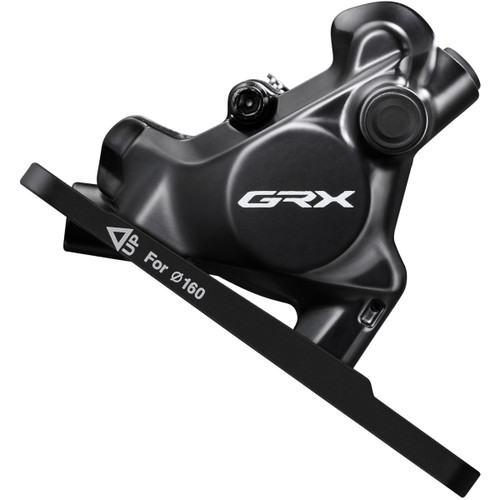

Caliper Specifications
- Model No: BR-RX820
- Series: GRX
- Brake type: Hydraulic disc brake
- Brake hose (kit): SM-BH90-JK-SSR
- Hose joint: Straight
- Brake hose color (kit): Black
- J-Kit spec (for OEM)
- ICE TECHNOLOGIES pad compatible caliper
- Pad:
- Standard 1: K05S-RX Resin (w/o fin)
- Standard 2: L05A-RF Resin (w/ fin)
- Option 1: L04C-MF Metal (w/ fin)
- Fixing screw spec for rear mount: 10 mm mount, 15 mm mount, 20 mm mount, 25 mm mount, 30 mm mount, 35 mm mount
- Recommended brake lever: ST-RX820 ST-RX820-LA BL-RX820-L
- Recommended disc brake rotor: RT-CL800
- Oil: SHIMANO mineral
- ONE WAY BLEEDING
- Mount type: Flat mount
- Piston: 2
- Caliper fixing screw:
- Tool size: 4 mm
- Anti loosen method: Screw fix pin+Snap ring
- Pad mount: Pad axle
- Average weight: 146 (Front) 136 (Rear)
