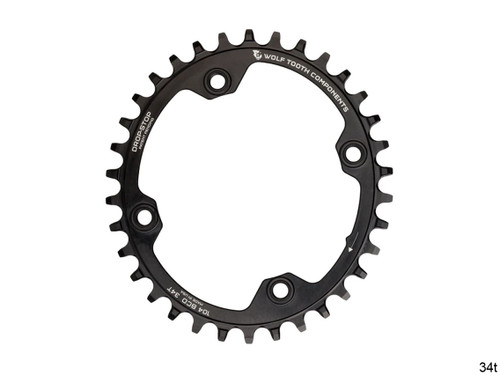

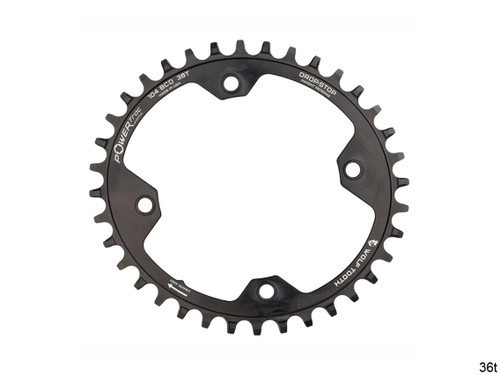

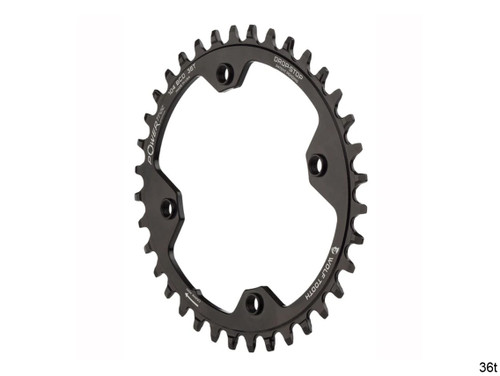

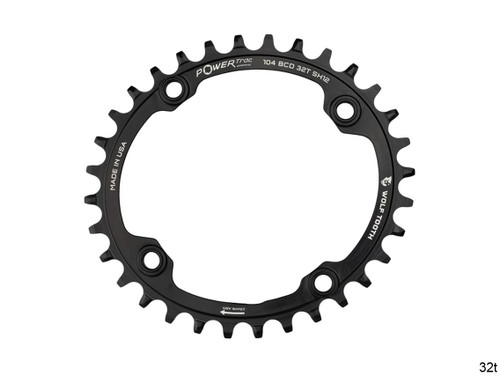

Wolf Tooth Elliptical 104 BCD Chainrings

From $89.00

Product Barcode

×

Adding to cart… The item has been added
  • Australia Post Collect

    Click & Collect with Australia Post

  • Fast & Free Shipping

    on orders over $79

More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth's PowerTrac Elliptical chainrings.



Wolf Tooths proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112) than their competitors' versions;any change to your pedal stroke is unnoticeable for most riders, but they still provide the power and traction benefits inherent to oval chainrings.



Features



With PowerTrac Elliptical (PTE) rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or "Power Zone," - between 1-5 and 7-11 on a clock face - to take advantage of your body's natural biomechanical power: For example, during this section, a PTE 34t ring is equivalent to a 36t round ring.



Similarly in the "Recovery Zone" (11-1 and 5-7), the smaller section on the PTE ring engages, maximizing efficiency in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.



Additionally, the above provides a smoother, more efficient pedal rotation, which means better traction. Steadier torque on the rear wheel means less spinning out in the "Power Zone," while pedaling is easier during the "Recovery Zone," so you maintain momentum.



Wolf Tooth's patented Drop-Stopwide/narrow tooth profile for the ultimate chain retention and mud shedding ability



Specifications






















Weight 32T - 41g

34T - 48g

36T - 55g
Material 7075-T6 aluminum
Compatibility These rings fit any 104 BCD crankset

Use Drop-Stop A for all 9, 10, and 11spd chains or 12spd SRAM Eagle, KMC, Connex or Wippermann chains

Use Drop-Stop ST for use with Shimano 12-speed Hyperglide+ chains.
Chainline Chainline (approximate as BB centering and cranksets vary) - 48mm on 3x cranksets and 49mm on 2x
