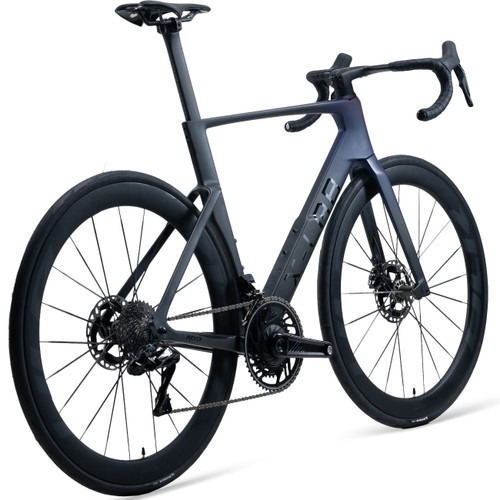

WorldTour championship aerodynamics, engineered to stay ahead.
The AD9 represents the pinnacle of X-LAB engineering. Designed in the wind tunnel and proven at the highest level of professional cycling, it is the official race machine of the XDS Astana WorldTour Team.
Every tube profile, surface transition, and structural element has been refined to minimize drag and maximize speed.
When the road opens up and the pace rises, the AD9 delivers what matters most: pure aerodynamic advantage, tested to the fullest by CFD and by wind tunnel.
This is the fastest road bike in the X-LAB lineup.
World-Class Aero Road Bike
Mount the race bike that has been proven time and time again by the XDS Astana, redefining what a WorldTour bike can do with a rare optimal combination of specs, geometry, and efficiency.
A Mastery of Carbon Fiber
Weighing just 6.8 kg with a Toray T1100 carbon frame, the AD9 leverages the best carbon build available from XDS’ decades of carbon mastery tested on championship-winning bikes.
Dominion over Wind Resistance
Using the latest engineering techniques of Computational Fluid Dynamics (CFD), the AD9 underwent strenuous wind tunnel testing in Silverstone that puts it firmly among the elites in aerodynamic race bikes.
Key Features
- Branta carbon crankset with integrated power meter + Apple Find My anti-theft technology
- Shimano Dura-Ace Di2 groupset
- Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g
- XDS carbon frameset with Toray T1100 | Full bike 6.8kg
Technical Specifications
- FRAME
- XDS Carbon Frame, Toray T-1100, UDH Compatible
- FORK
- XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle
- HANDLEBAR / STEM
- Branta Carbon Integrated
- SEATPOST
- XDS Carbon Seatpost, Aero Profile
- REAR DERAILLEUR
- Shimano Dura-Ace RD-R9250
- FRONT DERAILLEUR
- Shimano Dura-Ace FD-R9250
- SHIFTERS
- Shimano Dura-Ace ST-R9270
- BRAKES
- Shimano Dura-Ace BR-R9270
- CASSETTE
- Shimano Dura-Ace CS-R9200, 11-34T
- CRANKSET
- Branta Carbon Power Meter Crankset, 52-36T,
- 29mm Alloy Spindle, Apply Find My Anti-Theft Technology
- BOTTOM BRACKET
- T47 29mm
- ROTORS
- Shimano SM-MT900, F:160mm R:140mm
- CHAIN
- Shimano CN-M9100
- WHEELSET
- Branta C50 ULR, Carbon Rims & Spokes
- TIRES
- Michelin Pro 5 700x28C
- SADDLE
- Prologo Nago R4 PAS, Carbon Rails (Team Replica)
- Selle Italia SLR Boost, Carbon Rails (Hawkeye)
- WEIGHT
- 6.82 kg / 15.03 lbs (Size L)
Product images are for illustrative purposes only and may not reflect the exact specifications of the item supplied.
Specifications, features, and availability are subject to change without notice due to manufacturer updates and component availability.
Geometry & Dimensions
Basic Geometry (XS / S / M / L / XL)
- Seat Tube Length 470mm 495mm 515mm 540mm 565mm
- Top Tube Length 504mm 523mm 540mm 559mm 579mm
- Head Tube Length 105mm 118mm 130mm 148mm 171mm
- Seat Tube Angle 75° 75° 74° 74° 73°
- Head Tube Angle 71° 72° 73° 73° 73°
- Chainstay 410mm 410mm 410mm 410mm 410mm
- Wheelbase 970mm 978mm 982mm 992mm 1007mm
- Bottom Bracket Drop 72mm 72mm 70mm 70mm 70mm
- Stack in mm: 505mm 520mm 534mm 553mm 575mm
- Reach in mm: 371mm 379mm 387mm 395mm 405mm
- Front Center: 575mm 582mm 583mm 592mm 607mm
- Stand Over: 753mm 774mm 792mm 811mm 834mm
Component Geometry (XS / S / M / L / XL)
- Fork Rate/Offset: 48mm 48mm 43mm 43mm 43mm
- Trail: 67mm 63mm 64mm 61mm 59mm
- Handlebar: 360mm 360mm 380mm 380mm 400mm
- Stem: 90mm 90mm 100mm 100mm 120mm
- Crankset: 160mm 160mm 165mm 165mm 170mm
- Seat Post: 300mm 300mm 350mm 350mm 350mm
