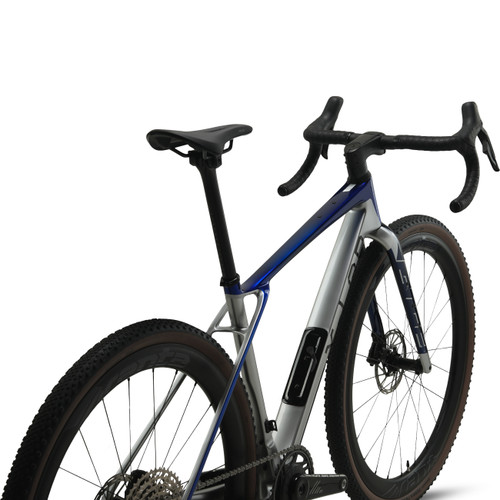

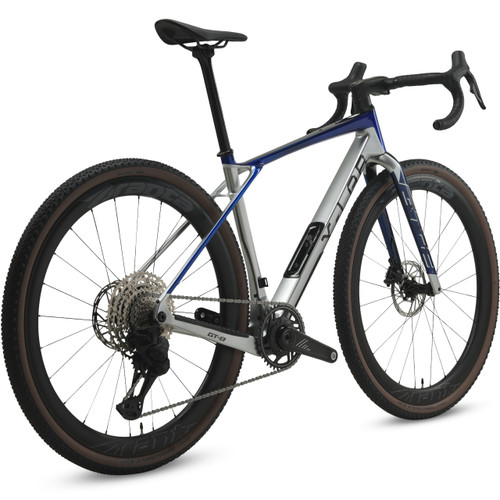

The GT8 is X-LAB’s first gravel platform, built for riders who see every road as an invitation.
Designed for stability, control, and long-distance comfort, the GT8 transitions effortlessly from pavement to dirt, city streets to open trails. With confident handling and durable carbon construction, it’s a gravel bike that encourages exploration without limits. Wherever the road disappears, the GT8 keeps going.
Where Gravel Gets Interesting
The GT8 is made for the rides that don’t follow a route. It was born to master uneven terrain, unknown turns, and long mixed-surface days where stability, speed, and confidence all matter at once.
Clearance That Changes the Ride
With up to 55mm tyre clearance, the GT8 opens the door to bigger comfort, more grip, and more capability wrapped in colourways that look as fierce as they feel.
The Seat Stay Advantage
A unique seat stay design balances strength, compliance, and precision handling. The GT8 is built to maximise ride performance while staying true to modern gravel standards and race-ready intent.
The Branta Advantage is Exclusive to X-LAB
FEATURES
- Branta C45 Gravel carbon wheelset
- Branta alloy crankset with integrated power meter and Apple Find My anti-theft technology
- In-frame storage and accessory mounting points on frame and fork
SPECIFICATIONS
- Frame: XDS T800 Carbon Frame
- Fork: XDS Carbon Fork, 100x12mm Thru-axle
- Stem: Branta Carbon Stem
- Handlebar: Branta Gravel Carbon Handlebar
- Seatpost: XDS Carbon 27.2mm Seatpost
- Rear Derailleur: Shimano GRX RD-RX820
- Front Derailleur: Shimano GRX FD-RX820
- Shifter: Shimano GRX ST-RX610
- Brakes: Shimano GRX BR-RX410
- Cassette: Shimano CS-HG710-12, 11-36T
- Crankset: Shimano FC-RX610-2, 46-30T
- BB: T47 24mm
- Rotors: Shimano SM-RT70, F:160mm R:160mm
- Chain: Shimano CN-M7100
- Wheelset: Branta C45 Gravel Carbon Wheelset, Steel Spokes
- Tyres: Continental Terra Trail 700x45C
- Saddle: Fizik Terra Argo X7
Product images are for illustrative purposes only and may not reflect the exact specifications of the item supplied.
Specifications, features, and availability are subject to change without notice due to manufacturer updates and component availability.
BASIC GEOMETRY (S / M / L / XL / XXL)
- Seat Tube Length: 447mm / 471mm / 491mm / 532mm / 577mm
- Top Tube Length: 525mm / 547mm / 566mm / 585mm / 605mm
- Head Tube Length: 100mm / 120mm / 140mm / 165mm / 190mm
- Seat Tube Angle: 75° / 74° / 74° / 73° / 73°
- Head Tube Angle: 70° / 71° / 71° / 71° / 71°
- Chainstay: 435mm / 435mm / 435mm / 435mm / 435mm
- Wheelbase: 1032mm / 1031mm / 1046mm / 1061mm / 1078mm
- Bottom Bracket Drop: 80mm / 80mm / 80mm / 80mm / 80mm
- Stack: 540mm / 565mm / 584mm / 607mm / 631mm
- Reach: 379mm / 384mm / 392mm / 399mm / 408mm
- Front Center: 610mm / 609mm / 624mm / 638mm / 655mm
- Stand Over: 730mm / 755mm / 773mm / 807mm / 838mm
COMPONENT GEOMETRY (S / M / L / XL / XXL)
- Fork Rake/Offset: 55mm / 50mm / 50mm / 50mm / 50mm
- Trail: 72mm / 70mm / 70mm / 70mm / 70mm
- Handlebar: 370/430mm / 390/450mm / 390/450mm / 410/470mm / 410/470mm
- Stem: 70mm / 80mm / 90mm / 100mm / 100mm
- Crankset: 165mm / 170mm / 170mm / 172.5mm / 172.5mm
- Seat Post: 300mm / 350mm / 350mm / 350mm / 350mm
